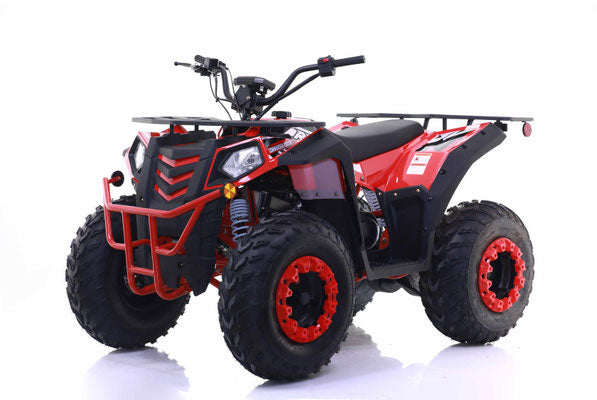

200CC COMMANDER ATV EFI
$2,699.00
Shipping calculated at checkout.
Pickup available at 6012 W. 34th st
Usually ready in 2 hours
Description
| Model name | COMMANDER 200 EFI |
| EPA Model | AGA-16 |
| Vichel Class | G16+ class |
| Overall dimensions （L×W×H） | 1670mm×1020mm×1100mm |
| Wheel base | 1110mm |
| front wheel distance | 815mm |
| rear wheel distance | 790mm |
| ground clearance | 135mm |
| Seat height | 760mm |
| Curb weight | 165kg |
| rated load mass | 150kg |
| Max speed | 60km/h |
| minimum turning radius | 3000mm |
| maximum gradability | 10° |
| front brake type | front hydraulic brake |
| rear brake type | rear hydraulic brake |
| brake operation | Front hydraulic brake by hand, rear hydraulic brake by foot pedal |
| front rim | steel |
| rear rim | steel |
| front tire size | 23×7-10 |
| rear tire size | 22×10-10 |
| front tire air pressure | 10P.S.I. |
| rear tire air pressure | 10P.S.I. |
| transmission | Chain |
| Spark plug type | A7RTC |
| Fuel injector model type | MEV1-080-B |
| Battery type | 12V、9Ah |
| Tank volume | 6L |
| packing size | 1465mm×870mm×860mm |
| Net weight | 160kg |
| Gross weight | 188kg |
| Loadign quantity | 57pcs/40'HQ |
| Transmission type | CVT，F- N-R |
| Engine type | 4 stroke,Single cylinder , air cooling |
| displacement | 174.4cc |
| Bore×Stroke | 62mm×57.8mm |
| Max power | 7.3kW/7500rpm |
| Max torque | 10N.m/6000rpm |
| ignition | CDI |
| start | electric start |
| fuel grade | RQ-93 |
| Lubrication | Pressure and splash lubrication |
| Engine oil grade | SAE15W/40 |
